Home » Products » Container House » Custom-made » Flat Pack and Size Customized Prefabricated Container House for Office/Living Home

Multi-story Building

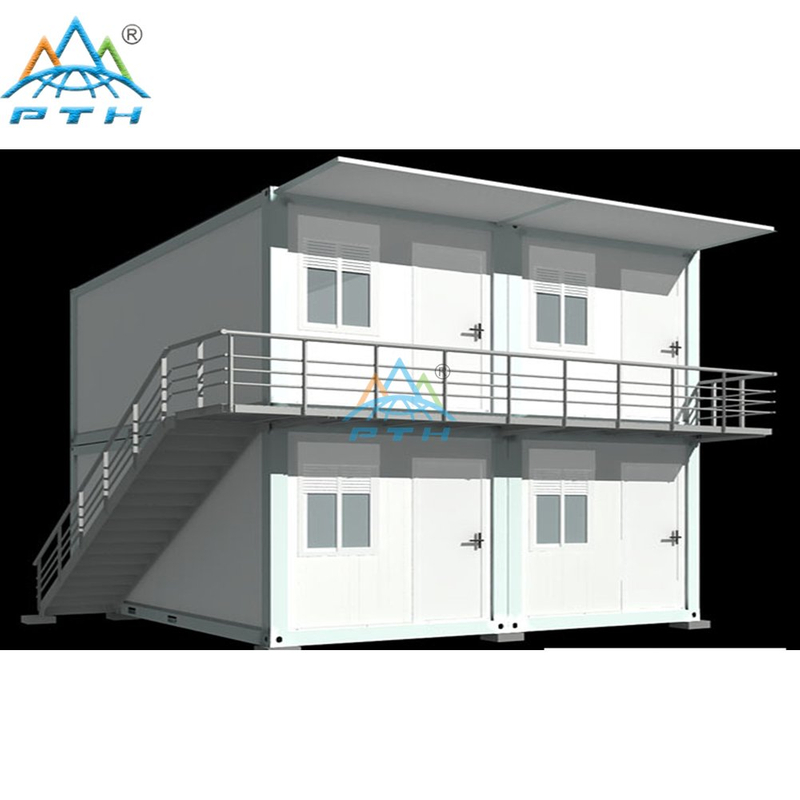

Flat Pack and Size Customized Prefabricated Container House for Office/Living Home

Share to:

Model NO.: Ve-3
Usage: Dormitories, Temporary Offices, Classroom, Office
Customized: Customized
Insulation: EPS, PU, Rock Wool
Seismic Load: Grade 8
Connection: All by Bolt
Material: Container
Size: 6058*2438*2591mm
Electricity: Light, Switch, Socket, Distribution Box, Breaker

  • PTH

Low Cost Modular Light Steel Villa House

Basic Info
Model NO.: Ve-3
Usage: Dormitories, Temporary Offices, Classroom, Office
Customized: Customized
Insulation: EPS, PU, Rock Wool
Seismic Load: Grade 8
Connection: All by Bolt
Trademark: PTH
Specification: CE; ISO9001: 2008
HS Code: 9406000090
Material: Container
Certification: ISO, CE, BV
Size: 6058*2438*2591mm
Electricity: Light, Switch, Socket, Distribution Box, Breaker
Wind Load: 220km/H
Installation: Install on Site, Fast and Easy
Transport Package: 7units/40′hq or 4units/20′soc
Origin: Shaoxing, Zhejiang China

Part 1:Company Profile
Easy-Assemble-Prefabricated-Villa-House-with-High-Quality

Flat-Pack-and-Size-Customized-Prefabricated-Container-House-for-Office-Living-Home



Part 2:Product Description

Container house
Container house is a kind of modular house, consisting of light steel frame and thermal insulated panels. It is a new type of energy conservation and environment protection house which is easy and convenient to install.

Service:
1. One-stop Solution : covering the whole process, from project planning, scheme and construction drawing design, producing, transporting and installing to project management
2. Reliable Quality: CE, CNAS, BV, ISO9001 certificate.
3. Leading R&D Ability: over 30 designers and engineers, more than 50 patents, and over 10 new products every year.
4. Outstanding Delivery Capacity: annual output is over 500,000 square meters, ERP and BIM management system.

Product:
Product Feature Application representative Project case
Container house 1. Easy installation
2. Suitable for extreme climate
3. Material optional
Mining camp
Residential living
Shower room/toilet
Cold storage room
1. Mining Camp in Kazakhstan
2. Residential Community in Venezuela
3. 3-stories mining camp in Chile
4. Army camp in Mozambique
Steel structure 1. Reduce construction cost
2. Reduce site management cost
3. Earthquake resistant
Shopping mall
School/hospital/hotel/ apartment
Factory/warehouse/workshop , distributor center
1. Distributor center in Virgin Islands(British)
2. Warehouse in India
3. factory in Brazil
4. warehouse in Albania
5. workshop in Sweden
Light steel villa 1. Suitable for extreme climate
2. Moisture-proof and great ventilation design
3. Long lifespan up to 70 years
4. Short construction period
5. environment material
Luxury Villa
Apartment
Hotel
Resorts
School
1. 3-story hotel in Gabon
2. 4-story apartment in Las Vegas
3. Resort villa in Mozambique
4. new type community in New Zealand
5. School in Sri Lanka
Eco home 1. easy installation
2. Suitable for extreme climate
Residential living
On site Office
Residential hospital in Bahrain


Container house's feature

1. Roof and base pod
feature Roof pod Base pod
Corner part H=160mm H=180mm
Main beam T=3mm, galvanized and painted T=3mm, galvanized and painted
Conduit 25mm PPR Fiber cement, T=18mm
Faceplate T=0.426 T=2mm PVC
Insulation 70mm injected PU, density=40kg/m³ Fiber glass T=70~100mm, density=12kg/m³, optional
Electricity 6 ways Distributions box, 2 breakers, 2 lights T=0.42mm steel plate
Weight 350kgs 850kgs
Loading 1kN/ m2 1kN/ m2

2. Post and wall panel
Parts Post   Wall panel
Size H=2266mm Size W1155*H2300*T75~100mm
Weight 24kgs Insulation EPS/PU/Minal wool, T=50~75~100mm
Packing 2pc/carton, each carton 50kgs Faceplate T=0.426~0.5~0.6mm,
Bolts M10*20 bolts for connection Treatment Zinc-Alu. Galvanized, 20/20um PE painting
Material Q345 Door & Window Door: W900*H2050mm; Window: W800*H1100mm, preinstalled into the wall panels
    Cable Preinstalled

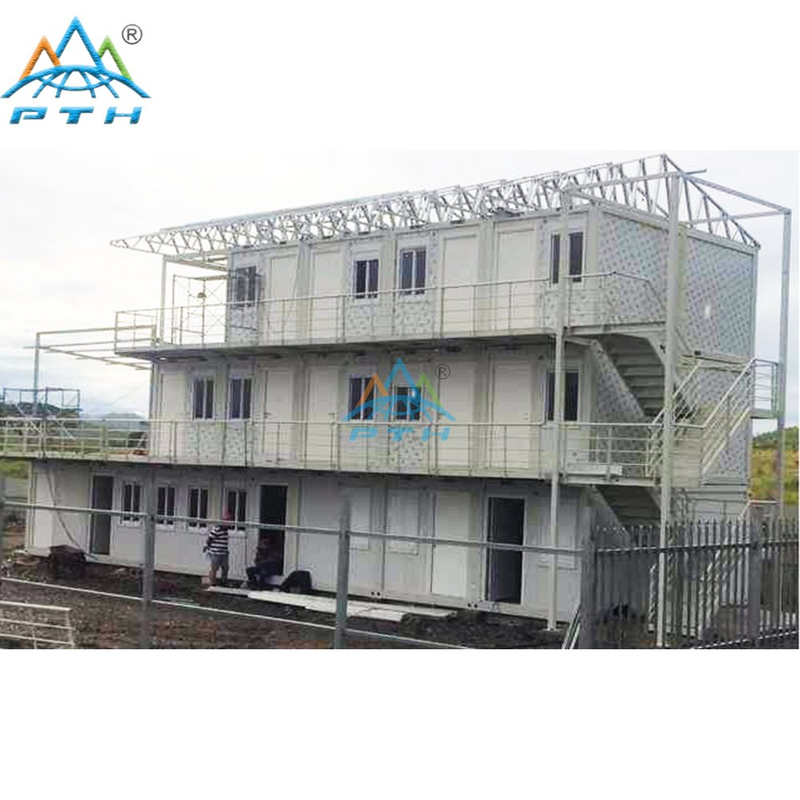

Part 2: Container house's application

Container house's application


Part 3: Installation

container-house-installation

Part 4: Loading & Shipment

 1. Checking
     Carefully check the shipping list, making sure no mistake.
 2. Packing
     Option one: a standard container house packed in one flat pack, 4 sets combined into one package. It can be shipped on board just as one 20' shipping container, the package will be protected by plywood boards around and thin film wrapped.
     Option two:  mixed packaging. Roof and chassis will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. It will be shipped in 40' container.


container-house-packing-shipping


Part 5:FAQ

1.    What is the product warranty?
We have 100% quality guarantee to customers. We will be responsible for any quality problem. PTH will provide free materials replacement at the first year,and will provide service continuously during the whole life span.

2.    Can PTH provide design?
Yes,PTH has a design team over 30 people ,we can provide design service.

3.    Will PTH provide installation service?
PTH provides customers with one-stop integrated housing solution including installation and operation. We have 3 options for on-site installation according to the customer's specific situation. Firstly, we offer installation instructions and installation video. Secondly, we assign the installation team for the project. Finally, we send professional engineer to guide the local installation team.

4.    How many countries has PTH ever exported?
More than 100 countries worldwide,mainly in South America,Africa,Middle East area,Oceania,Southeast Asia,Europe etc.

5.    What is the MOQ for PTH products?
       4units,6units or 7units.

6.    Can I be your agent?
Yes, welcome to deep cooperation. We have big promotion of PTH brand in the market now. For more info pls refer to www.putianhouse.com.

7.    Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.

8.    Are the products tested before shipping?
Yes, all of products was qualified before shipping. We test every batch every day.

9.    What is packing and shipping method?
6 or 7units  packed into a 40feet container
4units packed into a 20feet container as a 20'SOC.

10.  What's benefit will you bring?
The quality your clients are satisfied with.
Continued orders from your client .
Good reputation from your market and obtain more orders.
Easy-Assemble-Prefabricated-Villa-House-with-High-Quality-1
