Hot Sale Economical Modular Prefabricated Home With ALC Board

Share to:

Advantages of ALC board:1.Economica2. Durable3. Safety4. Comfortable5. Environmental protection

Quantity:
  • PTH

Hot Sale ALC Cheap Modular Home Prefab Container Homes

Advantages of ALC board:

1.Economical:first to show how economical it is, mainly is because of the thinner and easy foundation and less on site labor working hours.

2. Durable: Llife span> 50 years.

3. Safety: ①Fire resistance: 3.6 hours; ②Seismic resistance:8 degree.

4. Comfortable: ①Thermal Insulation:λ=0.11; ②Sound Insulation:100mmALC panel = 40.8db = 4 star hotel wall insulation level
5. Environmental protection:

ALC Panel compare with Solid clay brick:
Production energy consumption is reduced by about 30%
Construction energy consumption reduced by about 25%
The average energy saving rate is about 34%

More details:



Name ALC modular house
Exterior steel door 860mm*2050mm
Roof 100mm ALC panel
wall system 100mm ALC panel
column 100mm ALC panel
floor 18mm plywood&12 mm Laminated board
window 2 AL single glass sliding window
door steel security door or sanwich panel door
performance seismic resistance,wind resistance
Electricity 5 lights, 3 switches, 4 sockets, one set of distribution box,One wash basin + one toilet + one shower room

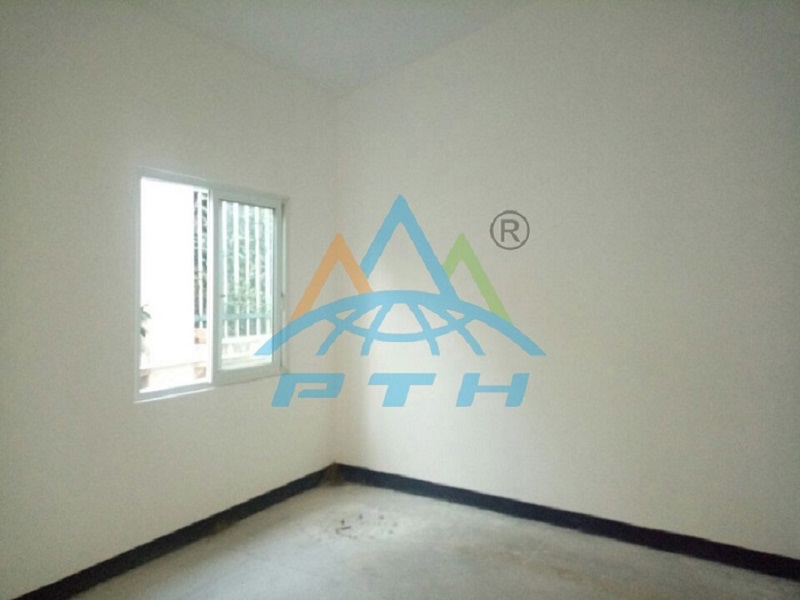

ALC panel..jpg

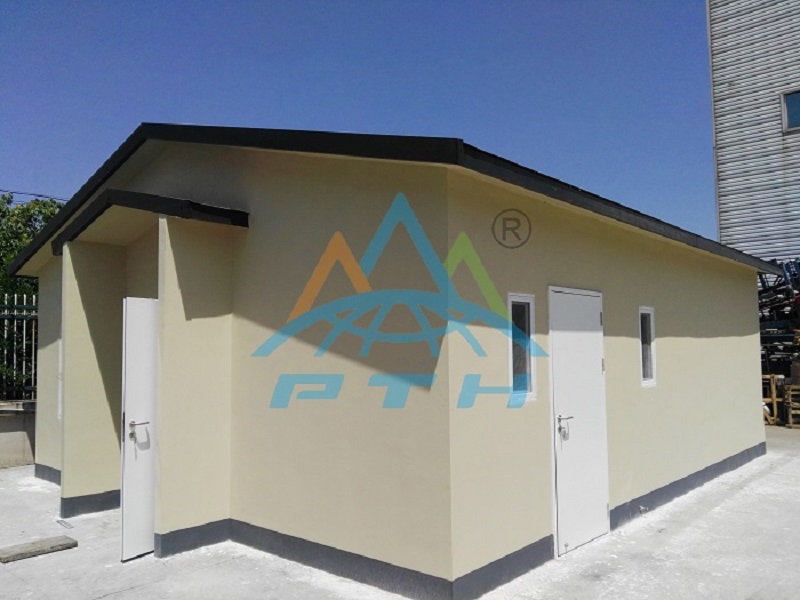

ALC container house.JPG



ALC house.jpg

ALC building.jpg

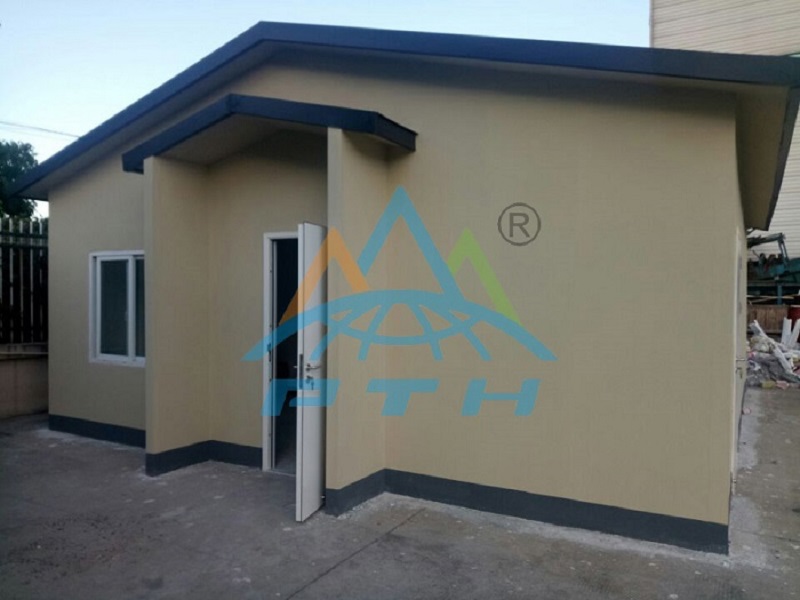

ALC Modular home.jpg

Construction procedure:

Step 1: Prepare plumbing, electricity, road, and flatten the ground.

ALC step1.jpg

Step 2: Fix chemical bolt onto concrete foundation Prepared water-proof material;Align the ALC wall panel with the bolt and fix it tightly.

ALC step2.jpg

Step 3: Fix OSB board on the top of wall with bolt and connection plate.ALC step7.jpg

Step 4: Fix ALC board roof with the OSB board.ALC step3.jpg

Step 5: Wall finish.

ALC step4.jpg

Step 6: Cable and switch installation.ALC step5.jpg

Step 7: Cable and switch installation.ALC step6.jpg
