Laos Container House Project

Share to:

Project Time: 2013
Project Location: Laos
Project Size: 32 sets of standard container houses and 8 sets of containers for toilet and shower room
Product Type: Container house

1. Project Overview
     Project Time: 2013
     Project Location: Laos
     Project Size: 32 sets of standard container houses and 8 sets of containers for toilet and shower room
     Product Type: Container house



2. Why Customers Choose PTH
     This project perfectly matches with PTH’s main products, and all the requirement is general standard of PTH, which could  bring customer the best product and service.



3. Project Description

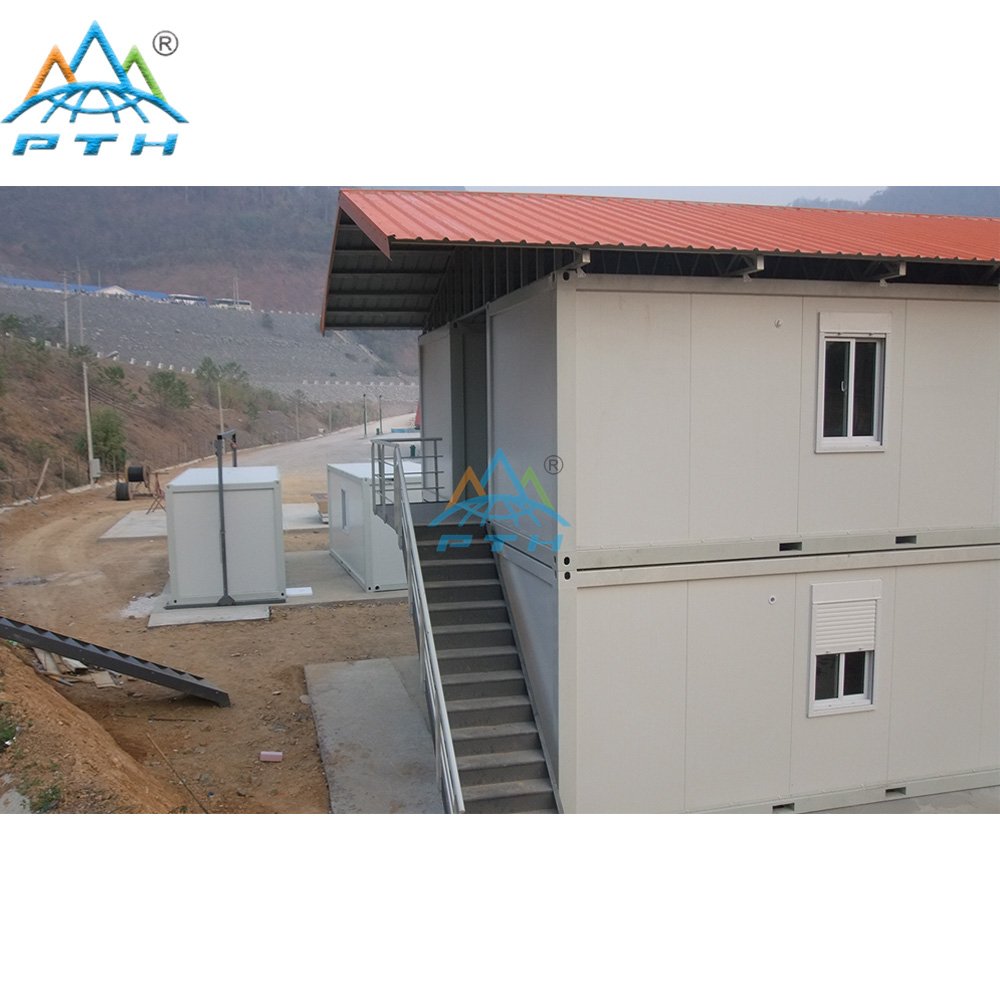

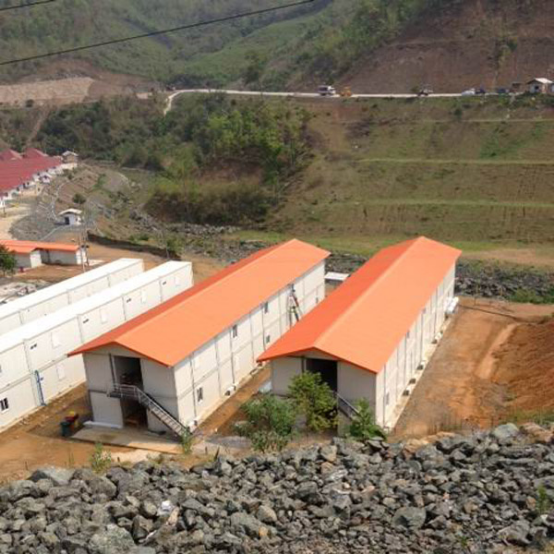

     The project is a duplex container house for staff accommodation. There are 8 sets standard containers and 1 set toilet container and 1 set shower room container, and a single across stair outside the house, the total structure is concise.

07.05-老挝集装箱-徐达676

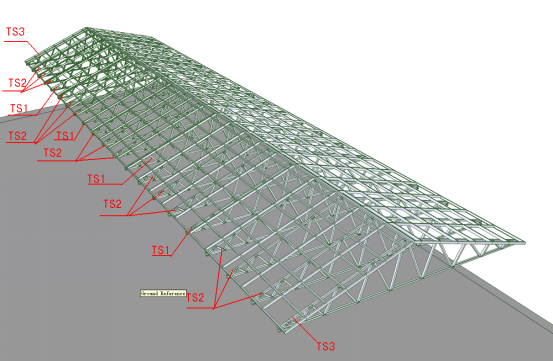

                                                Three-dimensional layout

07.05-老挝集装箱-徐达703

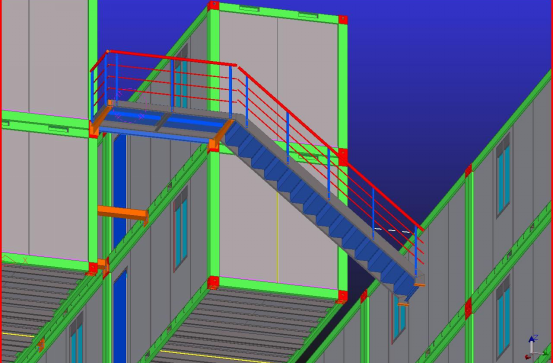

                                               Three-dimensional layout

4. Project Features and Selling Points
     With characteristics of quick installation, low cost and high applicability, container house is the best choice for site  residence.

5. Logistics and Transportation
     There are total 8 40ft HQs with total gross weight 75,000kgs, and are delivered by Ningbo port by 2 batches with each 4 ones. In addition to 40 sets of containers, we also arrange 1 set simple gantry crane and 4 sets three glass sucker for installation.

6. Onsite Installation

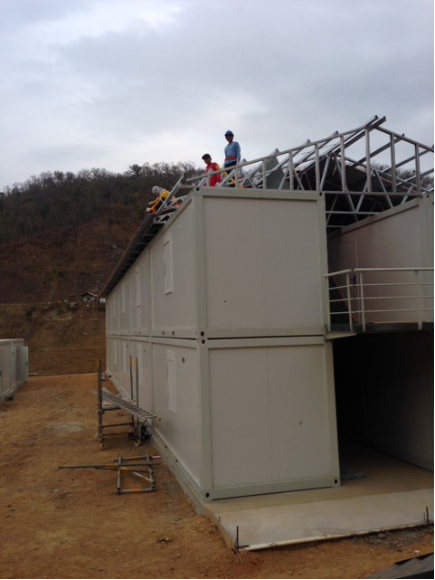

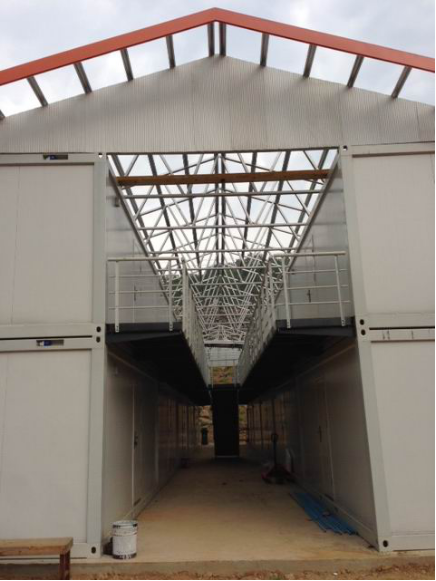

     The installation of container house and eco home is relatively simple. Add four pillars to support container house before  install the container bottom and then install the main structure according to bottom, column, tank top, wall system, and finally the light steel roof and single cross stairs, walkways.

07.05-老挝集装箱-徐达1518

                                                     Installation drawings 1

07.05-老挝集装箱-徐达1544

                                                     Installation drawings 2

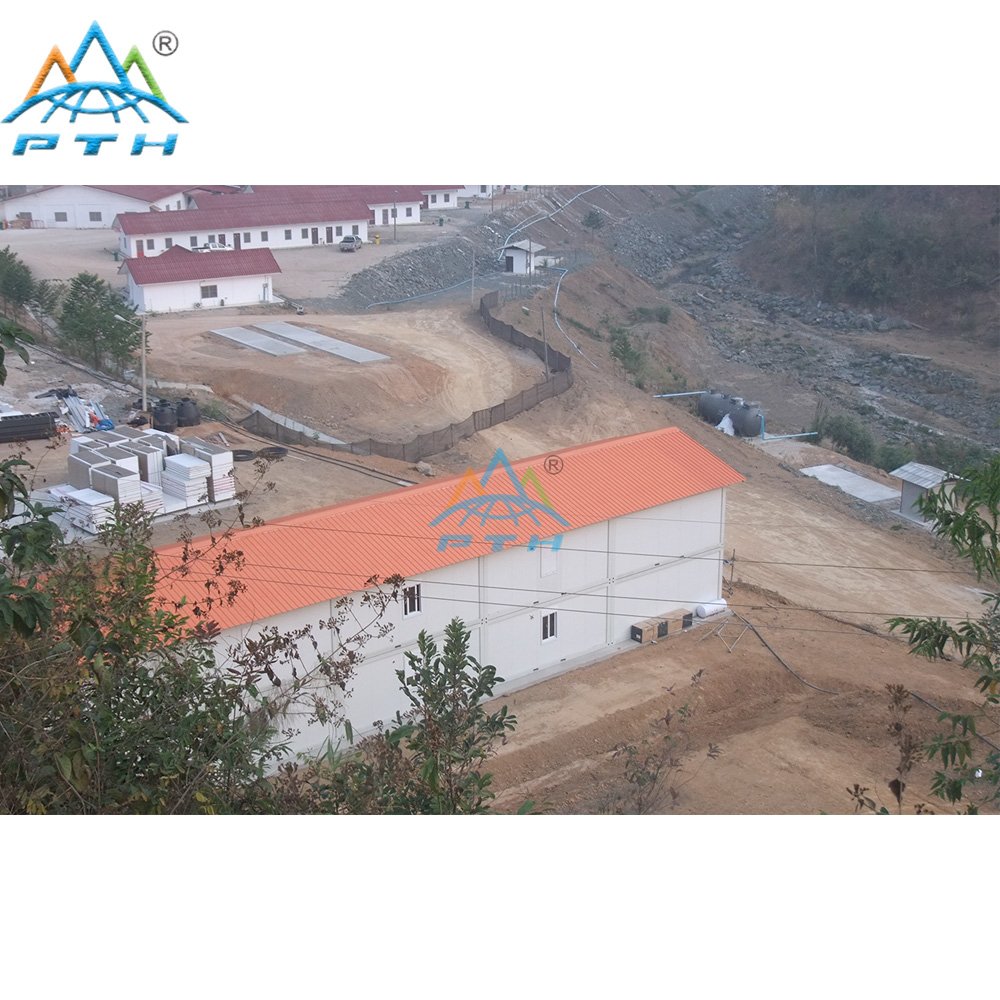

Laos container house project.jpg


ModelPTJ-8*20B
size6058mm*2438mm*H2591mm
Exterior steel door860mm*2050mm
Roof70mm PU sandwich panel
Doorsteel door or sandwich panel door
Wall system75mm EPS sandwich panel
Pvc single glass sliding window880mm*1100mm
Floorbedroom---plywood + laminated floor; bathroom---cement fiber board + PVC floor
Electricitythree lights, two switches, two sockets, one set of distribution box' One wash basin + one toilet+one shower room
Material

All steel members galvanized

Electricity:custom made
Usagedorms in the construction site, single department



Product Details



Introduction of the bottom of the container house


Frame made of Q345 steel board,  seamless bended, seamless welded, surface galvanized. Painted with

anti-corrosive paints, laying materials: laminate board, PVC board, blockboard, cement fiber board etc.

Bottom serial

1.Standard laminate floor

2.Public Toilet bottom

3.bottom of the toilet in the middle

4.Standard PVC bottom

5.light steel keel bottom

Introduction of the wall system

Consists of 0.42mm colored steel sheets on both sides or one 0.42 colored sheet and one 0.42mm stainless sheet, integrated with PU\EPS\ROCK WOOL etc. The size of the wall is 2310mm*1158mm. The thickness of the external wall is 75mm, and the internal wall is 50mm. The density of the EPS is 12kg\m³, the density of the rock wool is 100kg\m³. And the color of the wall is as per the clients’ demands.
Wall system series

1. Standard wood pattern wall panel
2. Standard blue wall panel
3. Inner door standard wall panel
4. External door(steel security door)fitted with standard yellow wall panel
5. External door(steel security door)fitted with standard block pattern wall panel
6. External door(steel security door)fitted with standard blue wall panel
7. Window(PVC aluminium alloy window) fitted in the standard wall panel) size:800*1,100mm
8. Window(PVC aluminium alloy window) fitted in the standard wooden pattern wall panel) size:800*1,100mm
9. Bathroom ventilated window(PVC aluminium alloy window) together with exhaust fan being fitted in the wall panel. Size: 800*400m

Related Products



Factory view




Factory overview


 Our factory & Main Products have been verified by Bureau Veritas(BV)

Our factory is located in Shaoxing,Zhejiang,China; 25minutes from the Hangzhou International Airport 790minutes from Shanghai& Ningbo City.
150 employees including 30engineers and 35 senior skilled workers
Professional Frame CAD from New Zealand specializing in Light Steel Villas
45000M2 building area,includes 2workshops 35000M2 total
More than 100 sets advanced production lines
Capacity For Steel Structure Houses:100000M2
Capacity For Steel Container Houses:3000 units

Packaging & Shipping




Checking&Packaging


  1.Checking

     Carefully check the shipping list. making sure no mistake.

  2.Packing

     Option one: a standard container house packed in one flat pack, 4 sets combined into one package. It can be shipped on board just as one 20' shipping container, The package will be protected by plywood boards around and thin film wrapped.

     Option two:  mixed packaging. Roof and chassis will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. It will be shipped in 40' container.

Loading&Shipment


  1. Flat packs will be one package it can be shipped on board just as one 20 shipping container.

  2. Mixed packaging: top and bottom packed together with bolts, all the wall panels packed together on wodden pallet. wrapped by corrugated board on the surface. and XPS board between panels. The package it will be then shipped in 40' shipping container

Company Information



Zhejiang Putian Integrated Housing Co., Ltd. Established in 2003,PTH is a leader in the Steel Structure industry.Certified by CE, BV IFA&ISO9001,We can design and manufacture all types of Steel Structure houses or buildings to suit your personal or business needs.We offer project support on any, or all phases of the steel design and detailing based on your project requirements. Providing consultation and delivery of a full range of steel structure design projects has recently opened retail showrooms in Toronto,Canada& Baharain and plan to expand into Australia,Europe,South Africa,Russia and the Middle East with many more countries to follow.Our 4S retail showrooms feature a full service network including:pre-sale consulting&design services,sales&shipment services,installation guidance services and most importantly after-sales customer support service.

Ouradvantages


1) Integrated base and roof, PU injected, excellent strength and tightness

2) 0.426mm color steel sheet for sandwich wall panel, strong and beautiful

3) All electric wires, water pipes, windows, doors and floor pre-setted, easy for assembling

4) Long time oversea project experience

5)  4S sales and service network, buy a house just like to buy a car

6)  Qualification: CE(DIN18800), ISO9001, BV

7) Durable, beautiful, economic and environmental

8) High Construction Efficiency (2 worker in one day for one unit)

9) Long life time (Max. 20 years)

FAQ



1. Do you provide on-site installation service?

1) Only large projects provide installation services

2) General projects, we can provide Installation guide service based on customers’ request.

3) Installation supervision charge standard: 150USD/day, customer should responsible for the travel fee, accommodation, translation fee, and ensure staff’s health and safety.

2.What’s your delivery time?

Salesman will confirm the time accordingly, large order should communicate with order management department in advance. Normally, delivery time is 45days after receive deposit. Large order delivery time should be arranged separately.

3.How to control the quality of your product?

a. quality of the design: think about possible problems in advance and provide a high quality design solution.

b. quality of the raw material: choose the qualified raw material

c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.

4. How to deal with quality problems?

Warranty is 3 years. Within the warranty period, PTH will responsible for all quality problems caused by production.

5. If there is a clear service life of your products? If have, how long?

Under conventional climate and environment, steel structure whole building 10 years, main structure 15 years, protecting system 10 years.

6. What designs do you have in different climates (How can the products adopt to different climates)?

Strong wind region:   improve the wind-resisting ability of the internal structure.

Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.

High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
