Steel Warehouse Buildings in Virgin islands(British)

Share to:

Steel Warehouse Buildings
Project time:2013.6-2014.12
Project Location: Virgin island
Category: Distributing center
Product type: Steel structure building

  • PTH

Steel Warehouse Buildings (Industrial Building)

Project Overview

Project time:2013.6-2014.12
Project Location: Virgin island
Category: Distributing center
Product type: Steel structure building

Specialist structural steel manufacture,  PTH, has supported the construction of a distributing center in virgin island through supplying its 4s service: consulting&design service, shipment service, erection guide service, and after-sales support.
1

team

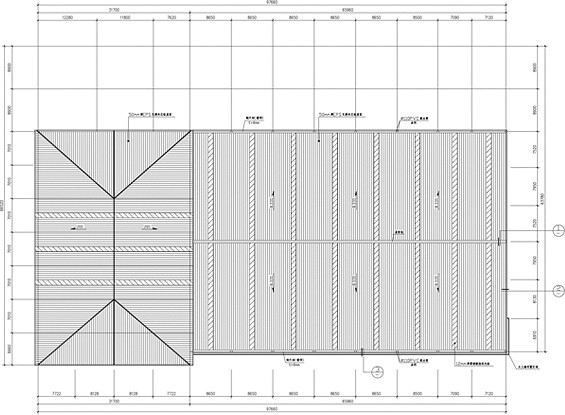

Project Design
Used for logistics & warehousing, the size of the whole project is over 10,000 sq.m, it is the most large-scale distributing center in the local place that offer PTH great opportunity for demonstrating their skill and performance.

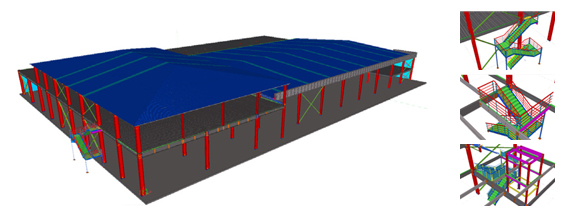

Detail Design
PTH team of experienced designers take space usage into fully consideration that the functiona area like office and parking lot are allocated besides the main storage area. Specifically, parking lot is of high strength of 500kg/sq.m floor load capacity to meet daily requirement, by building on a combination of 1mm galvanized pressed steel plate + 3 inch concrete floor.

As to the advantage of this steel structure building, Zhang Yifeng, a professional who charges of structural design, says:"We ensure that our systems are designed to provide optimum levels of structural performance in space ultilization, steel quantity, and stability, we always want to provide customer with a cost-effective solution".

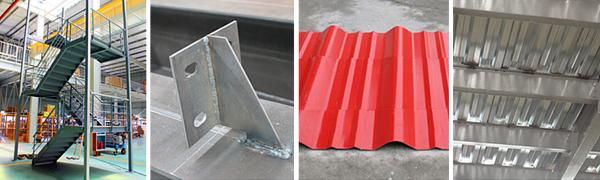

Manufacturing Process
10

PTH choose Q345 rather than Q235 as the main material because it is much better in the strength and the use of the steel. The outer wall is built of the brick to give a stylish look.

The office section is coverd with 4 slope roof with skylight panel, 4 slope roof is a comparatively complicated part of this steel structure building, particularly in the stage of manufacturing, PTH team of technicians take much more time working with attitude to ensure positionning accuracy.


On Site Installation
In conventional installation process, welding is a hard job for local unskilled workers, in such a circumstance, the stability and quality of the building can not be guaranteed, in this project, PTH improve the installation efficiency and accuracy by using high strength bolt connection between parts and pieces which allows for being quick in action for local workers.
12

13

Achievement
14


15

16
