Item No.: PTS-PT-01
Location: Norway
Area: 1492m2
Usage: Plant with warehouse
Spec.: light steel structure
Availability:
Quantity:
  • PTS-PT-01

  • PTH

Steel Structure Warehouse

1、Project Overview

Project time:2009.3
Project Location: Norway
Category: Steel Warehouse
Product type: Steel structure building
Area:1492m²

2、Project Description:

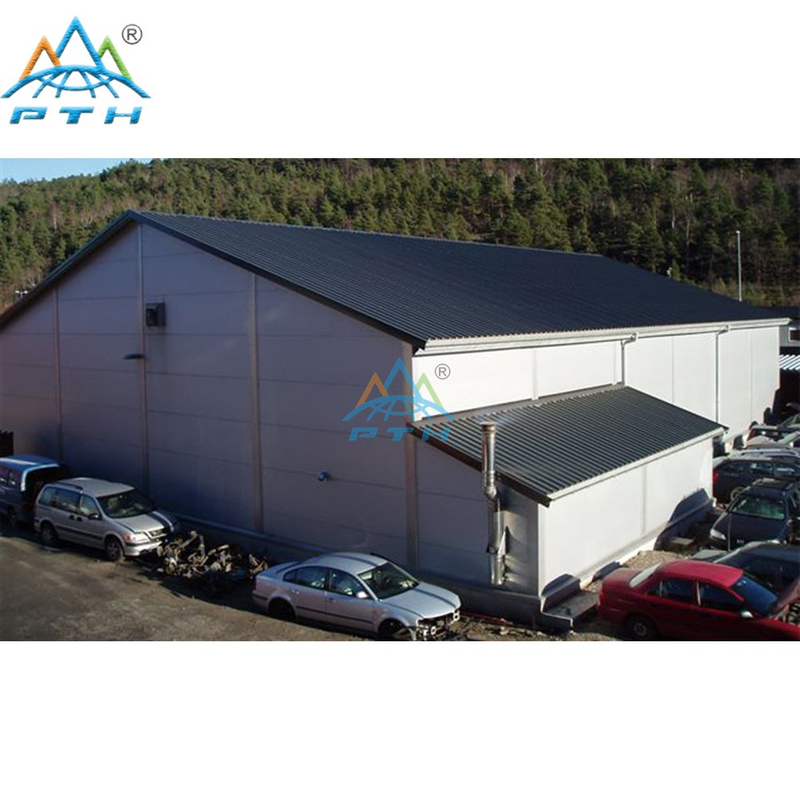

This project is mainly a 1492m² steel structure warehouse with a place for abandoned automobiles. The main structure is made of Q345B steel.The design concept of this project is based on Chinese current construction specifications and protocols, and then transfer into the requirements of Norway. We could not start before local building design department auditing. The project applies 3D3S steel structure calculation software of the Tongji University,and the security level reaches grade 2 and life span is 25years, while roof constant load arrives 0.30KN/m², basic wind load is 0.70KN/m², and basic snow load reaches 4.50KN/m².

The-Design-of-Norway-Project(1)
The Design of Norway Project(1)

The-Design-of-Norway-Project(2)
The Design of Norway Project(2)

The-Design-of-Norway-Project(3)
The Design of Norway Project(3)

3.Project Features and Selling Points:
The snow load of this project reaches 4.5KN / m²,which is an extreme limit.We choose to use 250 * 125 * 3.2 * 4.5 H-beams as purlin , and 75mm corrugated sandwich panel as wall panels to meet the local minus 20 extreme climate.

4.Why Customers Choose PTH
PTH is very thoughtful in details, and provides a lot of suitable and professional service according to the requirements of customers.During after-sales service, PTH is very timely to customer’s feedback and also a perfect problem solver, all of above improve the customers’satisfaction of PTH.

5.Logistics Transportation
The-Transportation-Picture

The Transportation Picture

The project logistic is divided into three batches for the convenience of construction work of customers.The total weight is 151,000kgs and volume is 685m³.we use the containers such as 6*40feet GP+5*40feet OT.

6. On-site Installation
anzhuangtu
The Install Instructions of Norway Project(1)
The-Install-Instructions-of-Norway-Project(2)
The Install Instructions of Norway Project(2)

PTH provides detailed installation drawings, with a complete explanation of the roof plate connected nodes, walls, roof plate, door. In roof installation, the length of the tiles is more than 12 meters, which needs disconnect operation .The main material we apply is H-beam, without small steel on the edge. If apply C style steel, we need to put small steel on the edge , which will increase the plane width, to connect the upper and lower plates.The project applies a kind of invisible lateral wall panel, the screws can't be seen from outside.

7. Customer Evaluation
There is some small problems with wall panels,it’s a little out of shape..We offered the
customer a layer of decoration outside the wall panel, which perfectly solved the problem in time, and further deepen the trust of the customers to PTH.

On-site-Picture1

On-site-Picture2

On-site Picture


MULTI-STORY STEEL STRUCTURE BUILDING



PTH can perfectly combine the traditional steel structure building with light steel building, This combination can be used as multi-story hotel, department, office building etc, This kind of building has many advantages, such as large span, Low demand of base structure, seismic and wind resistance,fast to build and easy to maintain and so on. It can be built on many special places such as mountain, beaches and land with bad condition.

We can also prefabricate the wall system and roof system for our clients so that it will shorten the construction period. The steel structure can be packed in one package, and it is easy to upload, download and stack in the site.



SINGLE-STORY STEEL STRUCTURE BUILDING

PTH's single-story steel structure building is widely used as workshop, warehouse, shopping mall etc. Compared with the traditional concrete building, steel structure building has many advantages, such as large span,low demand of base structure,Seismic and wind resistance, fast to build and easy to maintain and so on, Currently, our single-story steel buildings have been sold to more than 100 countries all over the world, such as Brazil, South, Africa, Dubai, Norway etc.
The walls of the steel structure building are also flexible, You can choose colored steel plate or EPS/PU/XPS sandwich panel as your wall system, Our products can be packed in one package, and it is easy to upload, download and stack on the site.
MANUFACTURE FLOW

The production of roof, floor and wall
we can produce colored steel glaze tile, colored steel EPS corrugated tile, floor, rippled plate, 16mm metal EPS external wall cladding,
100mm rippled sandwich panel, 100mm rock wool sandwich panel.
The production of the keels
We produce wall beam and purline, all members galvanized.
Factory view




Factory overview


 Our factory & Main Products have been verified by Bureau Veritas(BV)

Our factory is located in Shaoxing, Zhejiang, China; 25minutes from the Hangzhou International Airport 790minutes from Shanghai& Ningbo City.
150 employees including 30engineers and 35 senior skilled workers
Professional Frame CAD from New Zealand specializing in Light Steel Villas
45000M2 building area includes 2workshops 35000M2 total
More than 100 sets advanced production lines -_09.jpg
Capacity For Steel Structure Houses:100000M2
Capacity For Steel Container Houses:3000 units

Packaging & Shipping





Checking&Packaging


  1.Checking

     Carefully check the shipping list. making sure no mistake.

  2.Packing

     Option one: a standard container house packed in one flat pack, 4 sets combined into one package. It can be shipped on board just as one 20' shipping container, The package will be protected by plywood boards around and thin film wrapped.

     Option two:  mixed packaging. Roof and chassis will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. It will be shipped in 40' container.

Loading&Shipment


  1. Flat packs will be one package it can be shipped on board just as one 20 shipping container.

  2. Mixed packaging: top and bottom packed together with bolts, all the wall panels packed together on wooden pallet. wrapped by corrugated board on the surface. and XPS board between panels. The package it will be then shipped in 40' shipping container

Company Information



Zhejiang Putian Integrated Housing Co., Ltd. Established in 2003, PTH is a leader in the Steel Structure industry.Certified by CE, BV IFA&ISO9001, We can design and manufacture all types of Steel Structure houses or buildings to suit your personal or business needs.We offer project support on any, or all phases of the steel design and detailing based on your project requirements. Providing consultation and delivery of a full range of steel structure design projects has recently opened retail showrooms in Toronto, Canada& Bahrain and plan to expand into Australia, Europe, South Africa, Russia and the Middle East with many more countries to follow.Our 4S retail showrooms feature a full-service network including pre-sale consulting&design services,sales&shipment services, installation guidance services and most importantly after-sales customer support service.

Ouradvantages


1) Integrated base and roof, PU injected, excellent strength and tightness

2) 0.426mm color steel sheet for sandwich wall panel, strong and beautiful

3) All electric wires, water pipes, windows, doors and floor pre-setted, easy for assembling

4) Longtime oversea project experience

5)  4S sales and service network, buy a house just like to buy a car

6)  Qualification: CE(DIN18800), ISO9001, BV

7) Durable, beautiful, economic and environmental

8) High Construction Efficiency (2 workers in one day for one unit)

9) Long lifetime (Max. 20 years)

FAQ



1. Do you provide on-site installation service?

1) Only large projects provide installation services

2) General projects, we can provide Installation guide service based on customers’ request.

3) Installation supervision charge standard: 150USD/day, customer should responsible for the travel fee, accommodation, translation fee, and ensure staff’s health and safety.

2.What’s your delivery time?

Salesman will confirm the time accordingly, large order should communicate with order management department in advance. Normally, delivery time is 45days after receiving deposit. Large order delivery time should be arranged separately.

3.How to control the quality of your product?

a. quality of the design: think about possible problems in advance and provide a high-quality design solution.

b. quality of the raw material: choose the qualified raw material

c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.

4. How to deal with quality problems?

Warranty is 3 years. Within the warranty period, PTH will responsible for all quality problems caused by production.

5. If there is a clear service life of your products? If have, how long?

Under conventional climate and environment, steel structure whole building 10 years, main structure 15 years, protecting system 10 years.

6. What designs do you have in different climates (How can the products adopt to different climates)?

Strong wind region:   improve the wind-resisting ability of the internal structure.

Cold region: increase the thickness of the wall, or use good insulation material, improve the anti-pressure ability of the structure.

High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
