Villa Project in Guadeloupe

Share to:

Project time: Apr. 2014
Project location: Guadeloupe
Project scale:203㎡
Product type: light steel Villa

1.Project Overview
Project time: Apr. 2014
Project location: Guadeloupe
Project scale:203㎡
Product type: light steel Villa

2.Project Feature & Advantage

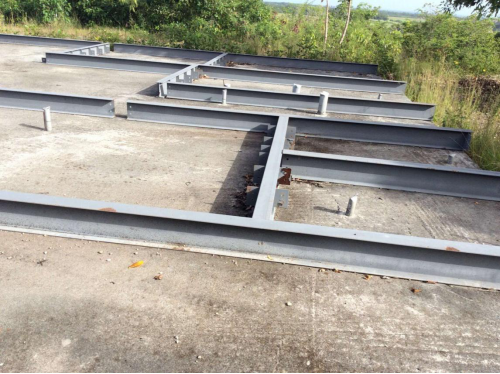

The chassis steel is Q235 and the house structure is G550
Roof system: 0.5mm glazed tile; one way house wrap; OSB board; glass wool
Exterior wall system: cement fiberboard; stone paint; one way house wrap; OSB board; glass wool; fire - retardant gypsum board.
Interior wall system: fire - retardant gypsum board; glass wool; fire - retardant gypsum board; one way house wrap.

Villa Project in Guadeloupe

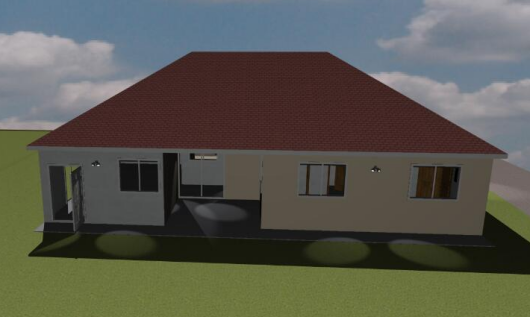

                                                                       The Design Graph

Villa Project in Guadeloupe (1)

People from Guadeloupe like the long corridor where people could enjoy the beautiful scenery and it’s also suitable for resort house.


Villa Project in Guadeloupe (2)

Villa Project in Guadeloupe (3)

Villa Project in Guadeloupe (4)







Materials of the wall system

PTH 16mm metal external wall cladding

Its surface is made of 0.42mm colored steel pressed

with embossed pattern;bottom is pasted with dampproof

aluminium foil; integrated with PU between the surface

and bottom. size: 16mm

PTH 12mm metal external wall cladding

Its surface is made of 0.42mm colored steel pressed

with embossed pattern;bottom is pasted with dampproof

aluminium foil; integrated with PU between the surface

and bottom. size: 12mm

Matal Carved board

Its surface is made of 0.42mm colored steel pressed

with embossed pattern;bottom is pasted with dampproof

aluminium foil; integrated with PU between the surface and bottom.

size: 16mm. effective width 375mm and 385mm

PVC metal external wall cladding(Holland style)

Size:

width:20.32-25.4cm

thickness: 0.8mm-1.0mm

Normal length: 3.81m

weigth:2.2(±0.1kg)/m²

Cement fiber external wall cladding(solid)

Size:

effective width: 460mm

effective thickness: 16mm18mm

Rippled plate

Size:

effective width:825mm

Metal external wall cladding pendant

Aluminium alloy belt course



 Insulation material

Glass insulation cotton

    Used in the wall system and roof system as

    insulation material.

XPS

    Used in the wall system and roof system as

    insulation material.

Building paper

    Isolate the mositure; mainly used in the wall

    system and the connection of wall keel and cement

    floor.

House wrap

   It is used to let the inside mositure out and

   protect the inner space from the humidity

   outside.Used in the wall system

 Downspout

•PVC gutter         •Steel gutter





 Boards

Gypsum board

Size: 2.4m*3m; 9.5mm/12mm15mm

Used in the inner wall, floor.

Cement fiber board

 Size: 2.4m*3m; thickness: 9.5mm/12mm/15mm

Wood floor







Factory view




Factory overview


 Our factory & Main Products have been verified by Bureau Veritas(BV)

Our factory is located in Shaoxing,Zhejiang,China; 25minutes from the Hangzhou International Airport 790minutes from Shanghai& Ningbo City.
150 employees including 30engineers and 35 senior skilled workers
Professional Frame CAD from New Zealand specializing in Light Steel Villas
45000M2 building area,includes 2workshops 35000M2 total
More than 100 sets advanced production lines
Capacity For Steel Structure Houses:100000M2
Capacity For Steel Container Houses:3000 units

Packaging & Shipping




Checking&Packaging


  1.Checking

     Carefully check the shipping list. making sure no mistake.

  2.Packing

     Option one: a standard container house packed in one flat pack, 4 sets combined into one package. It can be shipped on board just as one 20' shipping container, The package will be protected by plywood boards around and thin film wrapped.

     Option two:  mixed packaging. Roof and chassis will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. It will be shipped in 40' container.

Loading&Shipment


 1. Flat packs will be one package it can be shipped on board just as one 20 shipping container.

  2. Mixed packaging: top and bottom packed together with bolts, all the wall panels packed together on wodden pallet. wrapped by corrugated board on the surface. and XPS board between panels. The package it will be then shipped in 40' shipping container

Company Information



Zhejiang Putian Integrated Housing Co., Ltd. Established in 2003,PTH is a leader in the Steel Structure industry.Certified by CE, BV IFA&ISO9001,We can design and manufacture all types of Steel Structure houses or buildings to suit your personal or business needs.We offer project support on any, or all phases of the steel design and detailing based on your project requirements. Providing consultation and delivery of a full range of steel structure design projects has recently opened retail showrooms in Toronto,Canada& Baharain and plan to expand into Australia,Europe,South Africa,Russia and the Middle East with many more countries to follow.Our 4S retail showrooms feature a full service network including:pre-sale consulting&design services,sales&shipment services,installation guidance services and most importantly after-sales customer support service.

Ouradvantages


1) Integrated base and roof, PU injected, excellent strength and tightness

2) 0.426mm color steel sheet for sandwich wall panel, strong and beautiful

3) All electric wires, water pipes, windows, doors and floor pre-setted, easy for assembling

4) Long time oversea project experience

5)  4S sales and service network, buy a house just like to buy a car

6)  Qualification: CE(DIN18800), ISO9001, BV

7) Durable, beautiful, economic and environmental

8) High Construction Efficiency (2 worker in one day for one unit)

9) Long life time (Max. 20 years)

FAQ



1. Do you provide on-site installation service?

1) Only large projects provide installation services

2) General projects, we can provide Installation guide service based on customers’ request.

3) Installation supervision charge standard: 150USD/day, customer should responsible for the travel fee, accommodation, translation fee, and ensure staff’s health and safety.

2.What’s your delivery time?

Salesman will confirm the time accordingly, large order should communicate with order management department in advance. Normally, delivery time is 45days after receive deposit. Large order delivery time should be arranged separately.

3.How to control the quality of your product?

a. quality of the design: think about possible problems in advance and provide a high quality design solution.

b. quality of the raw material: choose the qualified raw material

c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.

4. How to deal with quality problems?

Warranty is 3 years. Within the warranty period, PTH will responsible for all quality problems caused by production.

5. If there is a clear service life of your products? If have, how long?

Under conventional climate and environment, steel structure whole building 10 years, main structure 15 years, protecting system 10 years.

6. What designs do you have in different climates (How can the products adopt to different climates)?

Strong wind region:   improve the wind-resisting ability of the internal structure.

Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.

High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
