Prefab Container for Mining Camping

Our accommodation containers are the ideal solution for temporary housing at mining camps. It is a cost-effective way to accommodate employees on-site near to the construction site. Our mining camps consist of a range of custom-designed accommodation containers that are built to last and come in a variety of sizes and layouts. We can custom design our mining camps to suit your requirements with a fast turn around time - from order to delivery.


  Prefab Container for Mining Camping-1  Prefab Container for Mining Camping-2

  Prefab Container for Mining Camping-3  Prefab Container for Mining Camping-4

 Prefab Container for Mining Camping-5  Prefab Container for Mining Camping-6


Project Overview

  • Project Location: Aktogai, Kazakhstan

  • project area: 35000㎡

  • Project usage: Mining camp housing



Located in the easten mining area of Kazakhstan, in order to solve workers' accommodation problems, Kazakhstan conducted mining camp housing cooperation project with China which realizes maximum capacity of 1000 people with an area of about 35,000 square meters.


PTH was chosen as the turn-key solution provider to enable quick and efficient manufacture of all the container houses.We provide turn-key solution including project design, detail design, prefabrication, constrution service.


Container Mining Camping Design

All of the container houses are designed one-storey structure, featured in heat preservation and insulation, and the dimension of most units is 2880MM * 9144MM * 2991MM.


The whole project is consist of 1550 container house in which it forms dormitories of workers and managers,recreation centre, living facilities include dining hall, washhouse, emergency room, supporting facilities include waiting room, prayer room, logistical and security centre. PTH offer innovative solutions to fully functional community in mining area.


Container Mining Camping design



Project Detail Design

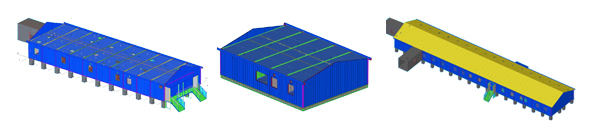

Container Mining Camping detail design


Manufacturing Process

Our material meet civil construction standards about insulation and fire-proof under severe cold environment.All the wall panels are rock wool sandwich panel with steel sheet(Baosteel brand) the thickness of interior wall reach to 60mm, exterior wall reach to 75mm, the aisle wall reach to 100mm.Window in interior wall is aluminum single-glazed, in exterior wall is aluminum double-glazed. Base frame is composed of box beam structure and casting parts. Floor panel is waterproof laminate sheathing floor and PVC floor, with glass wool insulation. Roof frame is composed of box beam structure,reinforced steel truss as secondary beam,insulation in roof is PU which is 75mm of thickness resulting in the advantages of excellent thermal insulating effect.In particular, washroom uses stainless steel wall panels to prevent rust or corrosion.


Container Mining Camping manufacturing process  Container Mining Camping manufacturing process-1



Prefabricate And Assemble Process

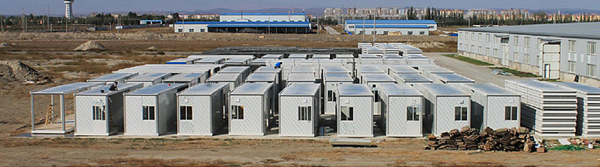

Container Mining Camping assemble process

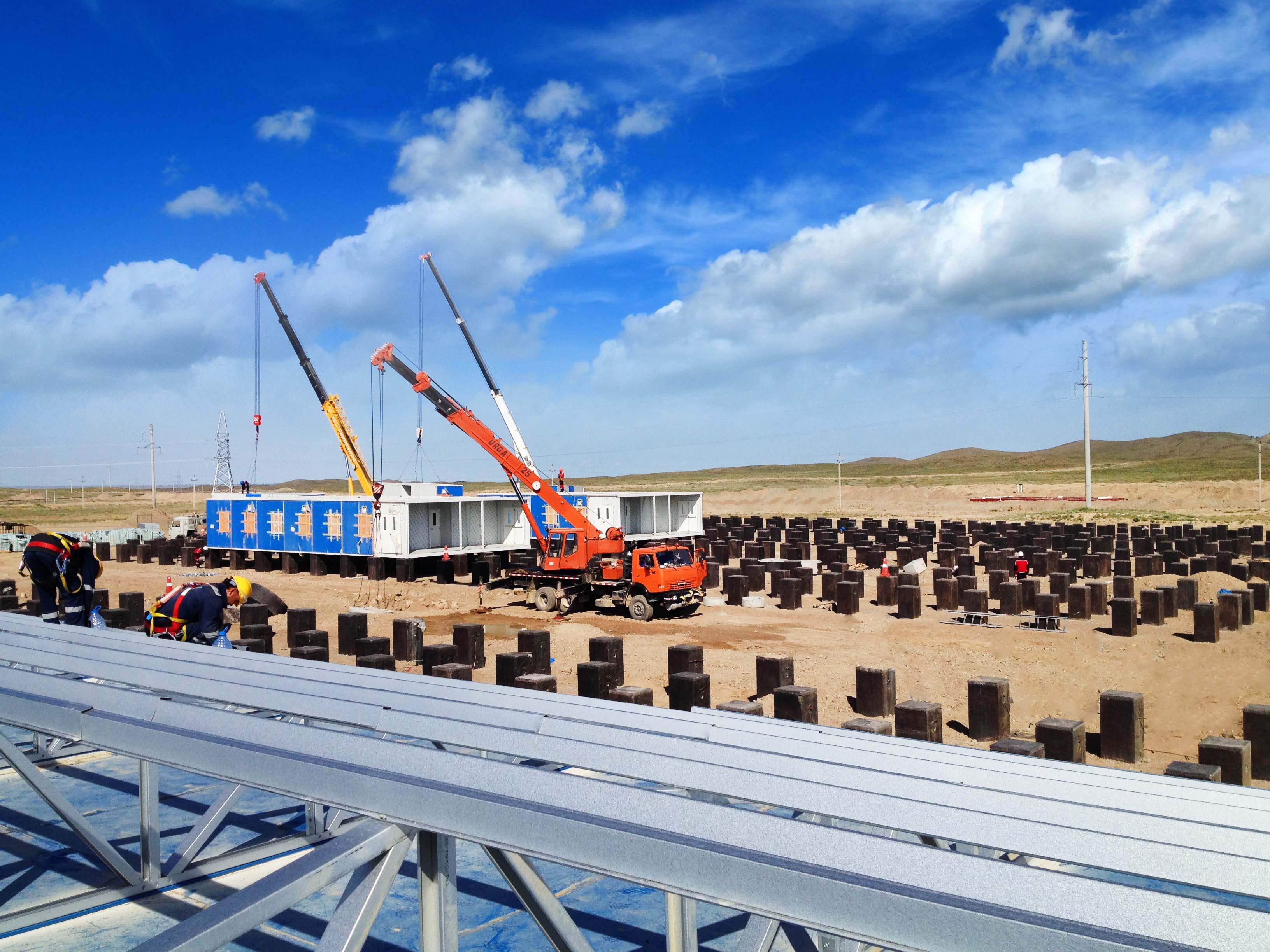

On Site Installation

As all the container houses are assembled offsiteto form easy-to-erect panels, the full frame could be delivered to the site and simply bolted together on location with huge time savings on this construction project. PTH provided a zero-waste solution and a low-carbon alternative to traditional concrete frames.


Container Mining Camping on site installation


Achievement

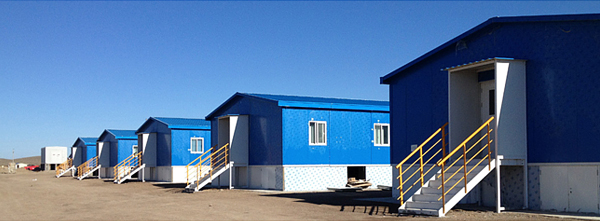

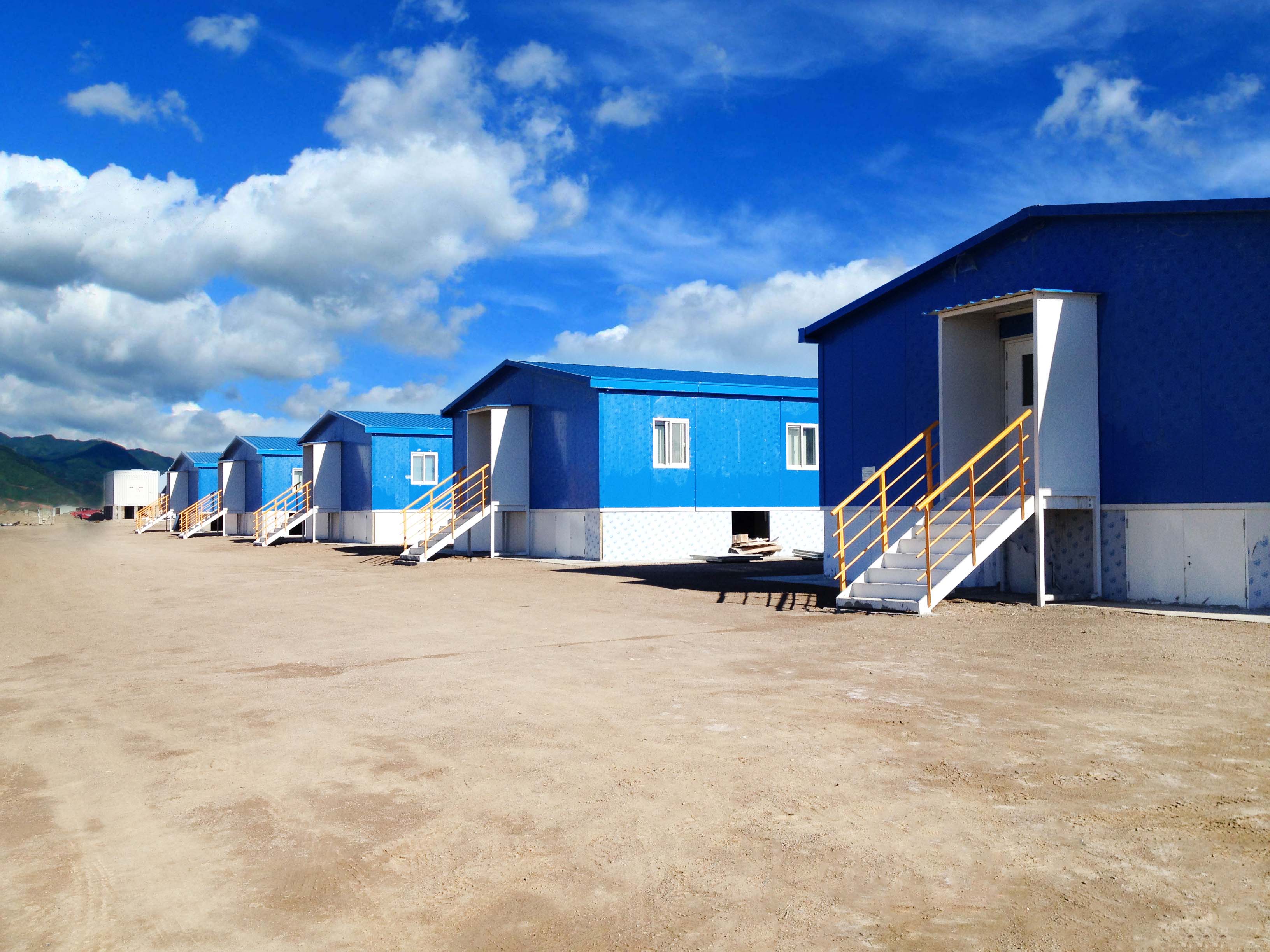

Finished Container Mining Camping

Finished Container Mining Camping-1


Cai Lin, On-site project manager, who is the professional in charge of installation, comments: "We are proud that we were able to play a leading role and supply a multi-functional community solution in mining area. We smooth the way for copper mining project in Kazakhstan by providing better living conditions for workers and managers."

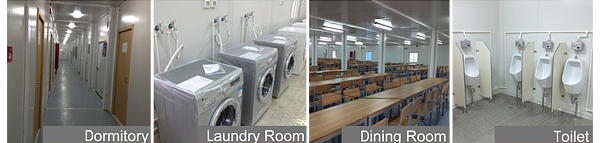

container house application
