Home » Prefab-X-Quick-Assembly-Houses-29㎡
Prefab-X Your Prefab , Your Space

Quick Assembly Houses( Q-29㎡)

• Anti Seismic:Second level (9 degrees)

• Size after expanding:6.038m*4.79m

• R value:2.95K.m/W

• Wind-resistance:200km/h (Level 16)

• Snow load:1.0 kN/㎡

• Sound-insulate:60db

• Outdoor height:2.86m

• Fire-resistance:Level 3(0.5 hours

• Indoor height:2.46~2.59m

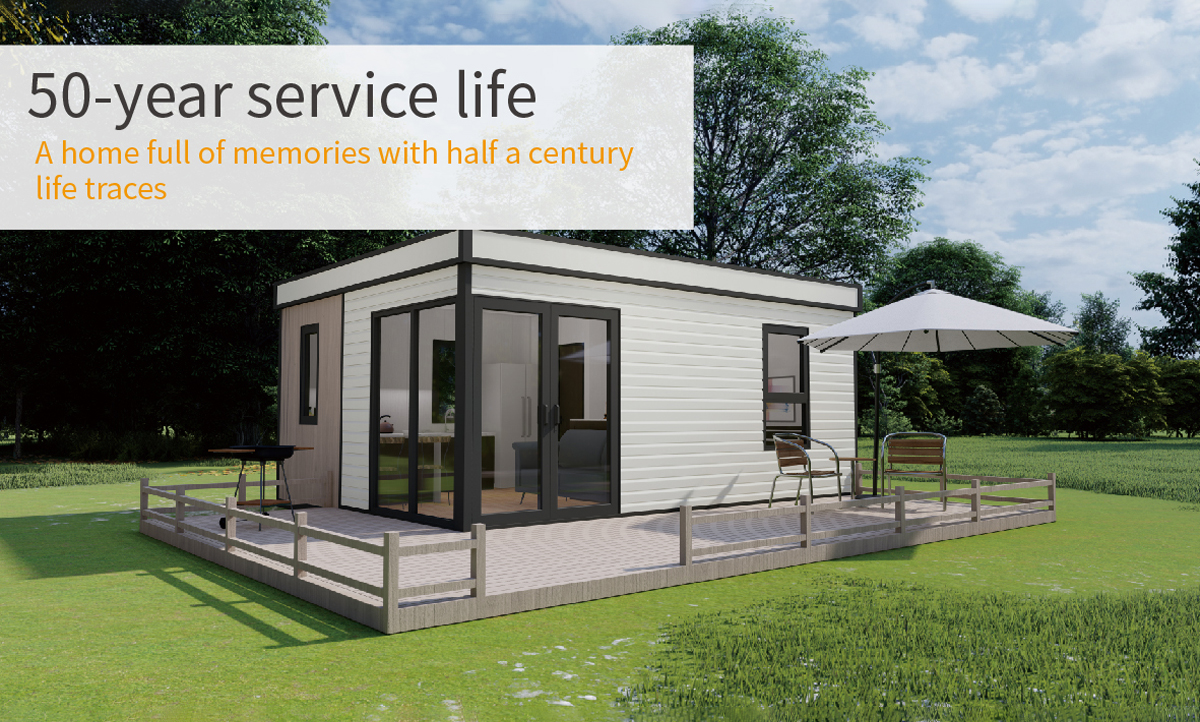

• Durability:50 years

• Loading:20 ft SOC

01
02
03

Technical Details

Configuration

1.Windows:bridge-cutoff insulated aluminum alloy frame + double glazing unit
2.Outside door: bridge-cutoff insulated aluminum alloy frame + double glazing unit
3.Inside door:aluminum alloy frame+solid wood composite door
4.Anti-weathering coating profiled metal board
5.Imitation wood
6.Wall filling:High thermal insulation PIR
7.Nano-tech inside wall: Bamboo wood fiberboard


8.SPC locking floor, Anticorrosive and pressure resistant
9.Shower room with a four-in-one bath heater,explosion-proof tempered glass sliding door
10.Wash basin&cabinet and mirror
11.Toliet
12.Switchs, socket,recessed LED ceiling light

Option

1.kitchen floor cabinet with stainless steel sink and stone countertop
2.Parapet wall
3.Refrigerator
4.Integrated stove with induction cooker and range hood
5.40 L Water heater
6.Solar power system
7.Eletrical roller door
8.Eletrical roller windows
9.Sofa table
10.Dinner tabel


11.Dinner chair
12.Washing machine
13.Dryer
14.Washing machine With dryer Function
15.TV
16.Sofa
17.Bed
18.Mattress
19.Spiral pile foundation
20.Footing beam

Product Details

Limit To Space But Not Life

01
02

Germany Passive House Technolog

Save 70% engergy than traditional hous

More Details

High Weather Resistance And High Strength Wall Structure

1. Bamboo wood fiber composite interior wall
2.Supporting derivative frames
3.PIR Squeeze film forming
4.High weather resistant metal pressed plate
5.High-strength aluminum alloy mechanism

Bamboo Fiber Interior Wall

High Weather Resistant Metal Pressed Plat

High-strength Aluminum Alloy Structure
