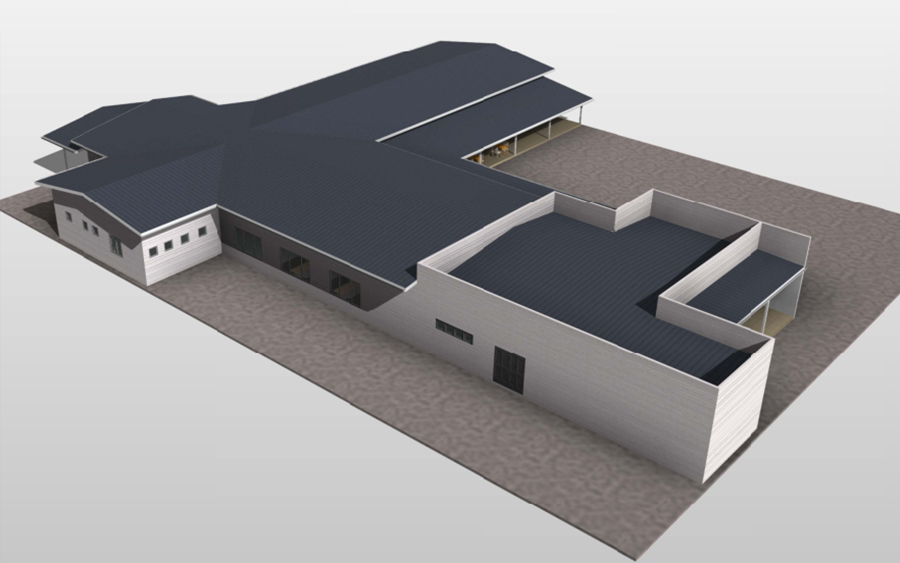

Kenya Double -C Structure Hotel Restaurant

Building profile;

1. The double-c restaurant building area is 899 square meters (half the area of the corridor), the roof adopts double-section roof, the front and back eaves: 0.90m, and the left and right eaves 0.60m.

Wind load: 0.30kn/㎡ Snow load: None

Constant roof load: 0.25kn/㎡ Live roof load: 0.50kn/m2 Constant ceiling load: 0.15kn/㎡

Material parameters;

Frame: The overall frame adopts a thin-walled steel frame + wall light steel keel system, and both the internal and external walls use 89 series light steel keel, and the material is G550 (aluminum-zinc AZ150g/㎡).

Roof panel: 0.5mm color steel corrugated veneer roof + 50mm insulation cotton with aluminum foil + thin-wall steel frame.

Exterior wall: 8mm cement fiber hanging board (transverse board) + 9mm OSB board + one-way breathing paper + 100mm glass insulation wool + 9mm OSB board + 9mm gypsum board (the bathroom is replaced by 9mm cement fiber board + bathroom wall tiles,

The kitchen is replaced with 9mm OSB board + 9mm cement fiber board + 1.2mm stainless steel interior wall panel).

Interior wall: 9mm gypsum board+9mmOSB board+one-way breathing paper+100mm glass insulation wool+9mmOSB board+9mm gypsum board (replaced with 9mm cement fiberboard+washroom wall tiles in the bathroom, and 9mmOSB in the kitchen

Board+9mm cement fiber board+0.8mm stainless steel inner wall board)

Ceiling: Indoor gypsum board ceiling, including primary and secondary keel (dry area ceiling)/aluminum gusset integrated ceiling, including primary and secondary keel (toilet/kitchen ceiling)/outdoor color steel plate ceiling

Floor: indoor tiles are 600*600mm, bathroom and kitchen are 300*300mm floor tiles + 3mm SBS waterproof (integrated with wall waterproofing).

Doors and windows: D1:900x2100mm single-open wood grain steel door D2:800x2080mm single-open steel wood door

D3: 1800x2100mm double-open wood grain steel door D4: 2000x2100mm glass floor bomb door

W1: 3000x1500mm aluminum alloy double glass fixed window, the glass needs anti-ultraviolet coating

W2: 2400x600mm aluminum alloy double glass top-hung window, the glass needs anti-ultraviolet coating

W3: 1800x600mm aluminum alloy double glass top-hung window, the glass needs anti-ultraviolet coating + embossing,

W4: 600x600mm aluminum alloy double glass top-hung window, the glass needs anti-ultraviolet coating + embossing

W5: 1200x1200mm aluminum alloy double glass sliding window, the glass needs anti-ultraviolet coating

Water and electricity: the gutter falling into the colored steel finished gutter + 70*50mm PVC rectangular pipe (including accessories)

The bathroom contains porcelain toilets, cabinet-type wash basins, and the bathroom contains water supply and drainage.

The kitchen is a commercial cabinet. A separate quotation is required.

Electricity 220v 60HZ socket British standard, other CE.
