Project time: 2017
Project location: Maldives
Category: School
Product Type: Double- C structure
Project Overview:

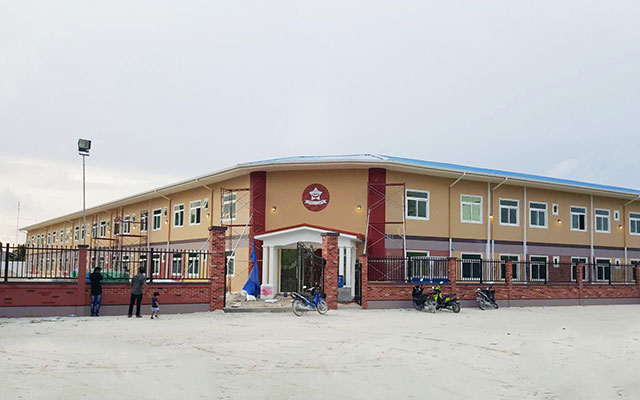

The double C structure school is located in Maldives, the frame system is double C steel with light steel keel. Building area: 2058 ㎡ (outside of external wall), roof slope: 18°.
Material:
Roof: 0.5mm1025 corrugated color steel sheet, white gray
External wall: 6 mm fiber cement board + one way house wrap + 9mm OSB board + 89 light steel keel(G550 galvanized,AZ150)+ 10mm Calcium silicate board
Internal wall: 10 mm Calcium silicate board + 89 light steel keel (G550 galvanized) + 10mm Calcium silicate board
Main frame: double C steel frame(200x90x35x2.5mm)+ C type purlin + 89 light steel wall frame,material is Q345,surface is hot galvanized (275g/㎡)
